HY27 Frame metal sheet hydraulic drawing press

Characteristics：

1.Based on Computer Optimizing Structure Design. Four-Column type

Hydraulic Press is with simple structure, economic and practical.

2.Cattidge Foundation System equipped in hydraulic control system

and below 550t. equipped in Electro slider valve hydraulic system with high

ellilbillty and durability, small hydraulic impact, and minimum hydraulic

impact design.

3.Electical system controlled by PLC unit, with the features of compact,

sensitivity, reliability and fleibility.

4.Three operation modes: Adjustment, Two-hand/single circle and Auto

continuous(equipped with robots) operations.

5.Under the choice of different actions, having Preset Stroke Forming or

Preset Pressure Forming Process, and cushion actions including Rest, Ejection

or blankholding can be selected. Flange Connections is adopted in

Hydraullc Plumbing System with good sealing performance and reducing

leak point.

6.Configurations: Servo CNC system, which with features of energy save

and easy adjustment.

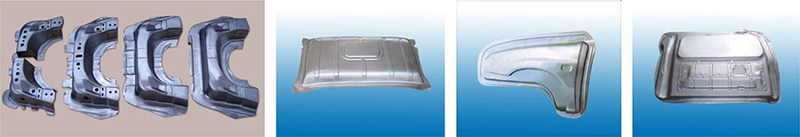

Case：

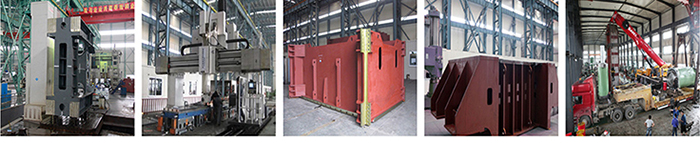

Design and Manufacture：

Processing capacity：
